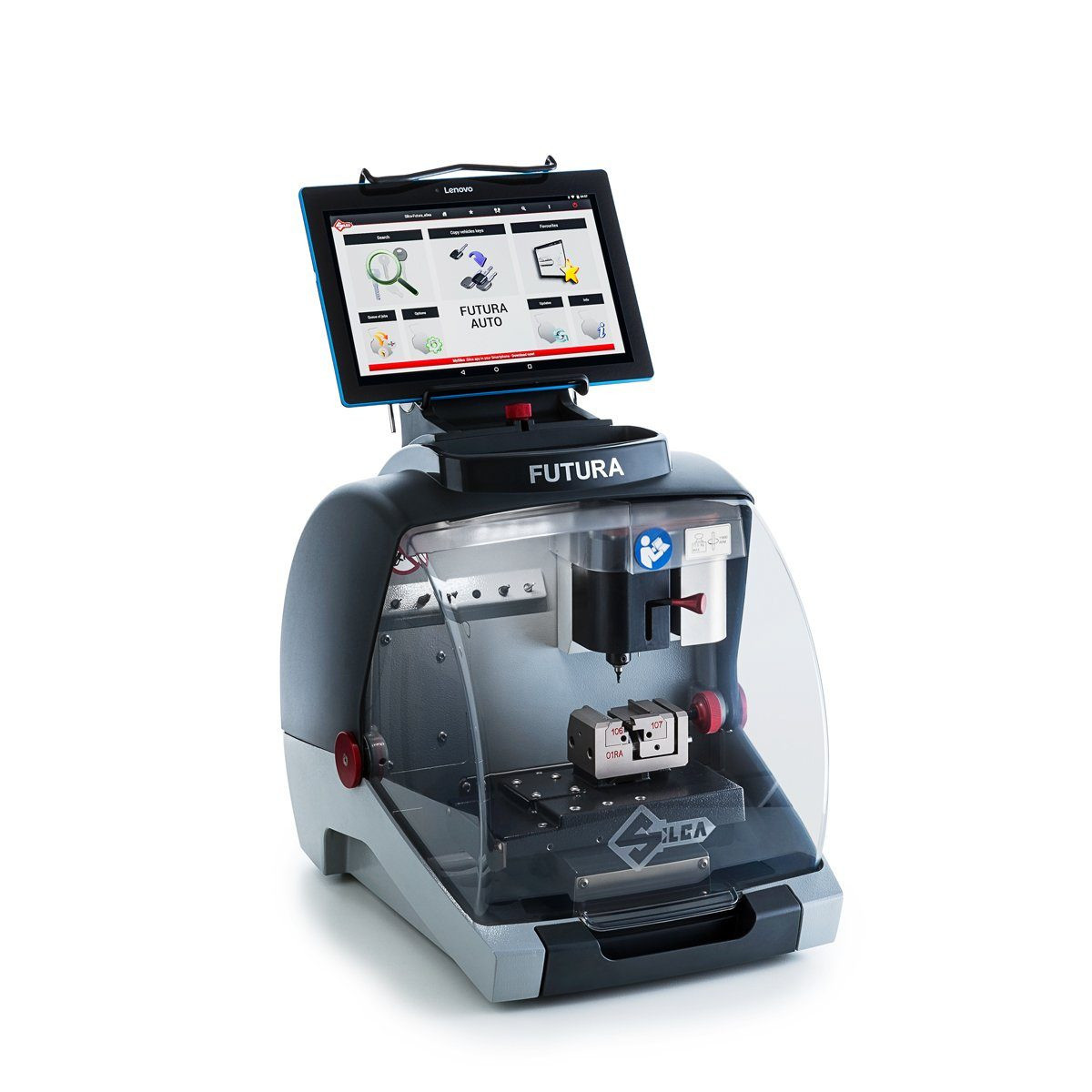

Futura Auto an electronic key cutting machine with one cutting station and two
interchangeable clamps for duplicating and originating all types of automotive keys, including heavy trucks and motorcycles.
Controlled by a removable 10” (254mm) touch-screen tablet, the Futura Auto guides the user step-by-step in all key cutting operations making it the perfect machine for those just getting into the automotive locksmith business or the seasoned professional offering roadside services.

Laser Automotive Keys

• 01RA clamp secures laser keys on the neck of the blade eliminating the need for special jaws or adapters
• Automatic tip detection for tip gauged keys
• Decoding by electrical contact
• Key-cut preview
• Software indicates which of the three cutters provided you should use to optimize the cutting cycle of a laser key allowing you to maximize cut quality and minimize cutter wear

Edge-Cut Automotive keys

• 01VA four-sided clamp with easy rotation system
• Software indicates which of the four jaws to use for each key reference to minimize vibration and maximize quality of cut (keys are gripped on the milling groove to provide stability when cutting two-sided symmetrical keys)
• Automatic detection of the key blank edge
• Large flip-up gauge for perfectly aligning keys in the jaw
• Decoding by electrical contact
• “Partial cuts” function for broken keys, allows you to decode a portion of the key or enter the known cuts and create a “cutting tree” to minimize the number of keys needed to create a working key

Other features:

• Fast key search – simply enter Make/Model/Year and the software guides you through the process
• Details include a cutter holder, tool/accessory holder on top of the machine
• Step-by-step instructions for updating machine software.
• Software Interface with Instacode® and Kreate-A-KeyTM
• Compact, lightweight and portable with ergonomic grip for easy lifting.
• Safety shield slides within the machine body making it perfect for small
• shops and vans.
• Mounting bracket included (for vans or shop bench)

Ease of Operation

• Generous sized working area, easily accessible and always clean thanks to the swarf collection system and the pull-down protective screen
• Shortcut function for vehicle key cutting code searches. Just input the first letters and the software will prompt the make and model your looking for, so you don’t have to manually enter the entire field.
• Multi-language support

Compact and Lightweight

• Compact, lightweight and portable with ergonomic grip for easy lifting
• Safety shield slides within the machine body making it perfect for small shops and vans
• Removable tablet stand can be locked onto the hood of the machine or placed on the counter

Safety Features

• Transparent safety shield contains chips and isolates moving parts
• All operations are disabled immediately when safety cover is retracted
• Large emergency stop button on side of machine

Technical Data
Motor: 24V DC
Power Supply: 90/264V AC 50/60Hz/220W MEANWELL GS220A24-R7B
Tool Speed: 12100 RPM
Movements: 3 axes (special bushings) driven by step motors on rectified roller guides
Carriage Runs: Axis X: 1.18” (30mm)
Axis Y: 1.97” (50mm)
Axis Z: 1.06” (27mm)
Dimensions: Width - 12.52” (318mm)
Depth - 16.26” (413mm)
Height - 20.47” (522mm),13.38” (340mm) w/o tablet
Weight: 44 lbs. (20 kg)
Warranty: 2 Years (machine and tablet)

Standard Parts / Accessories
Cutters: 12L HSS Super Rapid Steel - for edge-cut keys
01LW, 02LW, 06LW carbide, coated - for track keys
Tracers: 06T D953489ZR , 07T-Mobile D953488ZR
Clamps: 01RA D949928ZR w/Jaw 106 D949907ZR
Jaw 107 D949905ZR for laser keys
01VA D949854ZR for edge-cut keys
Accessories:

STOP 4 TOOL, Tip Stop Bar, Shoulder Stop Bar
01RA, USB Pen, 1.2/1.7mm shim pins, Brush,
Mounting bracket, Stylus touch pen, Z3 calibration
keys, 2.5mm “T” allen key, allen key set 1.5-5mm,
A45 adapter, spare fuses, plastic tool box

Optional Parts:

*02R Clamp D743275ZB for Tubular keys used on Harley Davidson® motorcycles
*03R Clamp D743276ZB for Ford® Tibbe® FO21 keys

80K LEXUS/TOYOTA Adapter

Downloads:

Futura Auto FAQ’s

Futura Auto Brochure

Videos:
Futura Auto Introduction
Futura Auto Instructions

ILCO Part Numbers: BK0497XXXX

The Futura Series Comparison Chart
