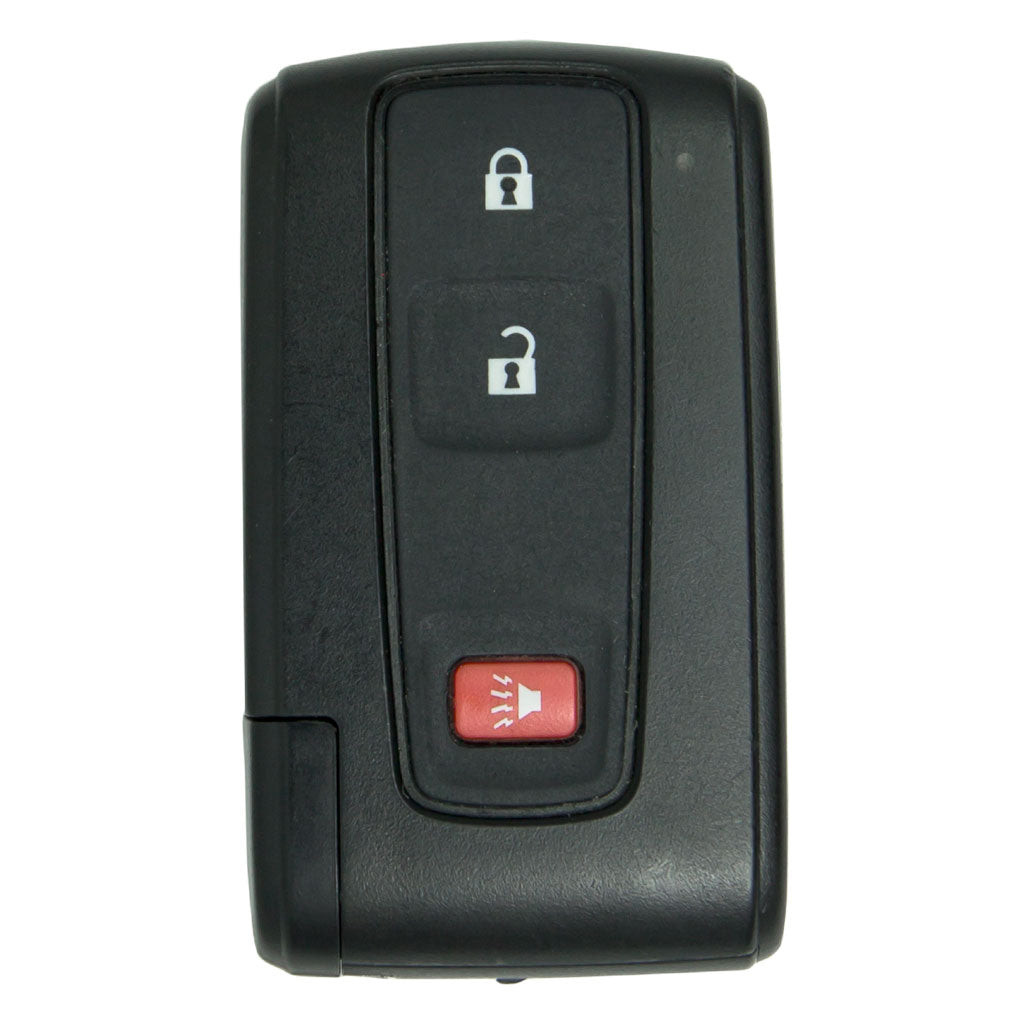

Keyless2Go 3 Button Proximity Remote Smart Key Replacement for Toyota MOZB31EG

Replacement for:
FCC ID # M0ZB31EG MOZB31EG
IC: 2584A-B31EG
OE # 89994-47061, 89994-47060, 89994-47091

FCC ID: 2AOKM-TY7
IC: 24223-TY7

Battery: CR2032
312 MHz

Fitment note:
This key works as a replacement for the Note Toyota key with the Silver Toyota logo (If you check the vehicle, it would have a button on the driver side door handle on the outside of the car)

Programming notes:
If it's all-key-lost (AKL) you will need to do an ECU reset otherwise the key gets locked.
04-09 Prius with Smart Entry requires a 2-STEP programming procedure:
STEP 1- Program the transponder inside the Fob into the Immobilizer system. Once this is done the Fob will start the car but only when inserted in the slot.
STEP 2- Program the Fob’s Smart Entry and RKE functions into the Smart Entry System. This enables the remote buttons to work and allows the fob to start the engine from anywhere in the passenger compartment.

If you have one working key where the smart functions are already programmed, you can follow this ON-BOARD programming procedure.
