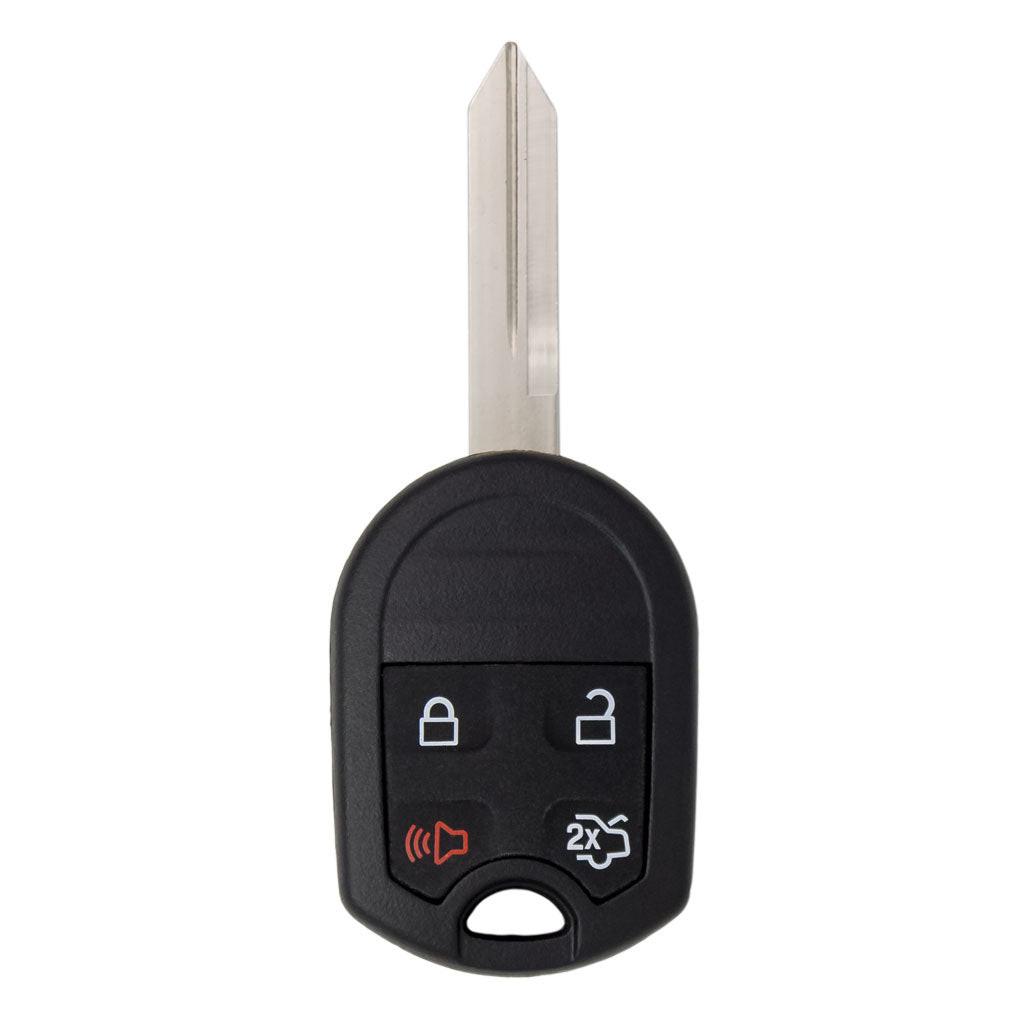

Keyless2Go 4 button Remote Head Key for Ford Vehicles

Replacement for:
FCC ID: CWTWB1U793, OUC6000022
Part: 164-R8073, 164-R8087, 164-R8021, 164-R8020, 164-R8096
Strattec: 5912512, 5921186, 5921293, 5921294, 5921295

FCC ID:2AOKM-FD3, 2AOKM-FD3B
IC:24223-FD3, 24223-FD3B
Part #: RT-FD087, RT-FD087B
Battery: CR2032
Chip: 4D63 80 Bit (SA on the blade)

Important: this key will not fit if there is a guard (collar) on the ignition

Onboard Programming:

• 2 Note working keys required to program immobilizer
• REMOTE PORTION: MUST BE PROGRAMMED USING ONBOARD PROCEDURE SEPARATE FROM TRANSPONDER.
