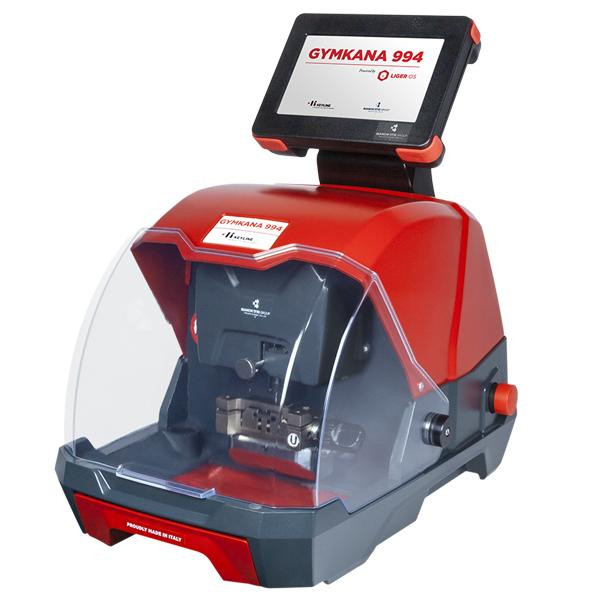

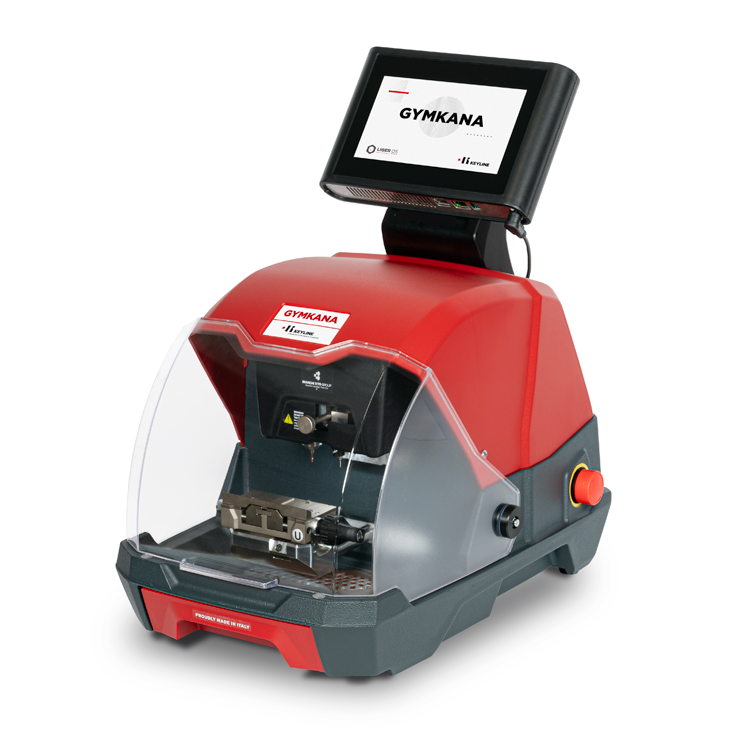

New GYMKANA 994 Key Machine

• Automotive high security and double-sided edge cut
• Cuts by code or duplicates
• All-in-one self-aligning universal jaw
• One cutter and tracer
• No adapters or tip stops needed
• Faster software boot-up

Intuitive software

• Faster software loading, intuitive screen prompts
• Software updates easily done via USB memory stick or Internet

Universal clamp

• Z-axis allows for new self-aligning universal clamp (works for 994 Laser A/B/C/D/F/G clamp applications)
• Optional clamp for 6-cut Tibbe OPZ09523B
• No tip stops or adapters needed

Universal cutter and tracer

• One cutter and tracer used for high security and double-sided edge cut applications
• 2mm carbide cutter and tracer are easy to change out and replace

Ergonomic design

• User-friendly design features large safety shield and mounting bracket for console or tablet
• Chip tray easily removes for chip disposal

Versatile

• Perfect for shop or mobile operations
• Android software app also available for maximum versatility

Specifications:

• POWER: 110/60Hz
• MOTOR: Brushless
• CUTTER SPEED: 3000-8000 rpm (variable)
• KEY READING: Electric contact
• LIGHTING: LED illuminated cutting bay
• USER INTERFACE: 7” color touch screen, 16:10, resolution 800 x 480 px, VGA
• ELECTRONIC EQUIPMENT: Mainboard with iMX6 CPU, 1 GB RAM, 4 GB memory
• WEIGHT: 42 lbs. DIMENSIONS: 12” W x 18” D x 12” H (machine); 8” W x 6” D x 3” H (console)

INCLUDED PARTS:

Universal Cutter - V037 -  Part# RIC07786B
Universal Tracer - T08 - Part # RIC11110B
Universal U Clamp - Part # OPZ11114B

2 year warranty

Software updates included for the first 2 years

Replacement parts and accessories:

B9980 Mounting Kit for Gymkana 994

RIC10952B Calibration Template for Gymkana 994

RIC05274B V012 Cutter 1.5mm for Versa / Gymkana 994

RIC05350B T00 Calibration Tracer for Versa / Gymkana 994

4GB USB Memory Stick For Software Update For GYMKANA 994, 994 Laser, Ninja Total

RIC07786B V037 2.0 mm Universal Cutter For GYMKANA 994

RIC10714B T07 Universal Tracer for Versa and Gymkana 994

OPZ10260B V CLAMP Volkswagen For Gymkana 994, Ninja Laser, 994 Laser

Gymkana 994 Shield

H Jaw (tibbe 6-Cut keys)
