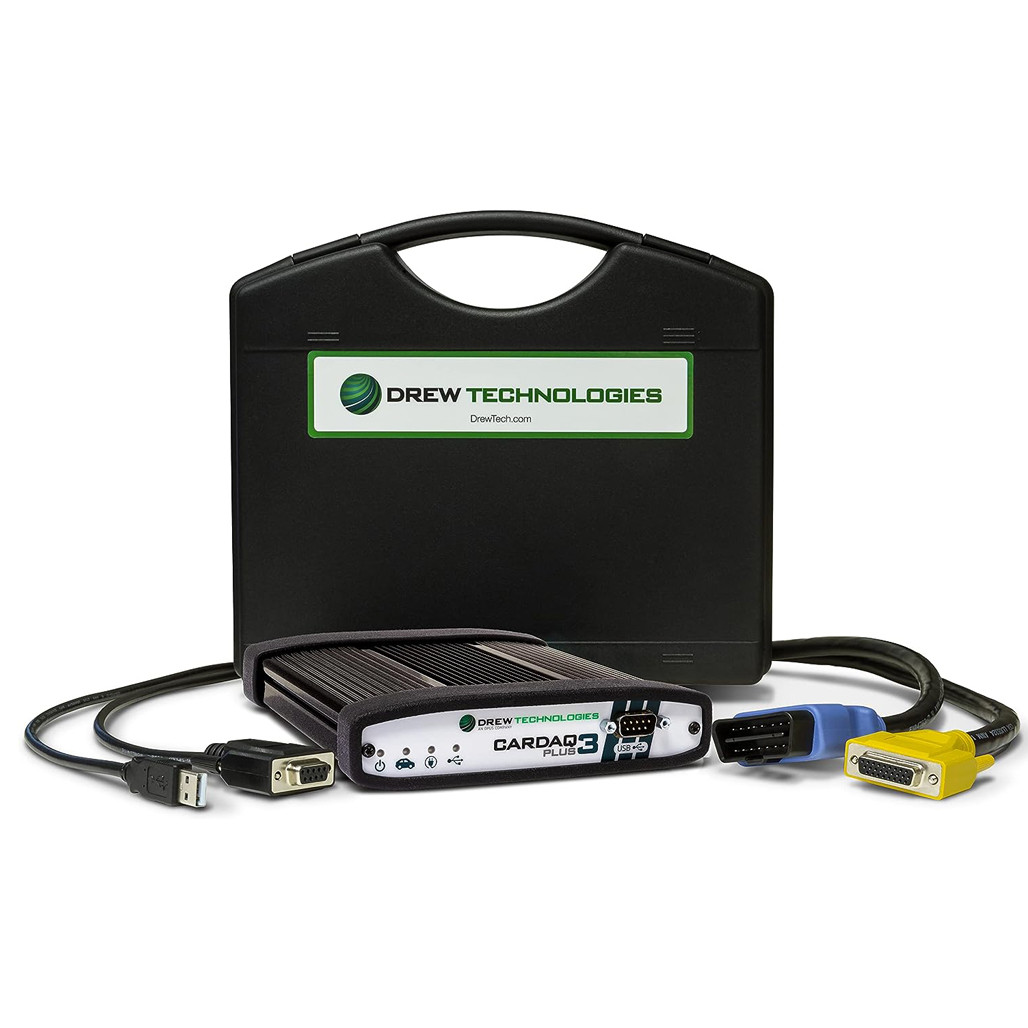

OPUS CarDAQ-Plus 3 Universal J2534 Pass Through Device

ITEM #:
203164
SKU:

OPS-EP-CARDAQ-PLUS-3-001

CONDITION:
New
OE#:
CARDAQ-PLUS-3

OPUS CarDAQ-Plus 3 Universal J2534 Pass Through Device

  • Have questions?

  • Best Product Selection

  • Industry Leading Tech Support & Training

Features:

  • Perform more tasks in your shop – no need to send vehicles out for diagnostics, reprogramming and vehicle security
  • Keep control of costs and timings, so your customer knows when their vehicle will be ready and how much it will be
  • Maximize your skilled labor hours
  • J2534 Pass-Thru Technology – Enabling OEM diagnostics and reprogramming applications across multiple vehicle brands using a single device
  • Future technology built in – CarDAQ includes future technology for a long service life
  • Requires NASTF membership for OEM Software

CarDAQ-Plus 3 Reprogramming:

  • All-makes, all-model SAE J2534 reprogramming

  • OEM subscription prices

  • SAE J2534-1: CarDAQ-Plus 3 is the most advanced device for reprogramming of ALL OEM with the use of their OEM provided software

  • SAE J2534-2: CarDAQ-Plus 3 offers extra J2534-2 support that expands reprogramming beyond just the Engine/Trans modules for GM, Ford, Chrysler, Toyota, Honda, Audi, VW, BMW, Volvo and more!

J2534 OEM Diagnostics:

BMW/Mini – ISTA
FCA – Wi‑Tech 2.0
Ford – Ford J2534 Diagnostic System (FJDS) & Ford Diagnostic and Repair System (FDRS)
GM – Global Diagnostic System (GDS2)
GM – Tech2Win (PC-based Tech2 software)
Honda – Honda Diagnostic System (i-HDS)
Jaguar/LandRover – Integrated Diagnostic Software (IDS) & Symptom-Driven Diagnostics (SDD)
Mercedes-Benz – XENTRY J2534 Pass‑Thru
Mistubishi – Multi-Use Tester III Special Edition (MUT3‑SE)
Nissan – Consult III Plus R2R
Subaru – Subaru Select Monitor 4 (SSM4)
Toyota – TechStream
VW/Audi (VAG) – Offboard Diagnostic Information System (ODIS)
Volvo – Volvo Information and Diagnostics for Aftersales (VIDA)

Vehicle Security Professionals:

Technicians and Locksmiths use the CarDAQ-Plus 3 for Security Key systems/reprogramming on all vehicle makes supported by the OEM and through the NASTF SDRM model.

Technical Support:

  • J2534 Toolbox 3 – Your personal assistant to help you through the process, including: videos, walk-through help guides, FAQs, and other online support.

  • Free, live telephone and email support from 8:30am – 5:30pm EST for all of our Drew Technologies products.

Bus Protocols:

CAN Bus (Capable of CAN FD, ISO 15765, GMLAN, J1939, and ISO14229)
3 CAN channels (FD CAN, Dual Wire)
1 Single wire CAN
Ford SCP (J1850PWM)
GM Class2 (J1850VPW)
KWP2000 (ISO9141/14230)
Chrysler SCI (J2610)
USB version 1.1 or higher
Compliant to SAE J2534 (Feb 2002) and SAE J2534-2 (Dec 2004)
Compliant to ISO 22900-11MVCI physical layer
Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14, or Aux
Ground pins 9, 12, or 15
Supports Windows Vista (32/64-bit), and Windows 7 (32/64-bit)), Windows 8 (32/644-bit), Windows 10 (32/64-bit).
Consult OE website for their PC requirements
Operating voltage: 7 – 36 Volts
Dimensions (approx.): 6.5″D x 6″W x 1.5″H
Operating Temperature: Commercial Range (0 C to +70 C)

Download the brochure here.

BRAND
OPUS
CONDITION
New
ITEM #
203164
OE#
CARDAQ-PLUS-3
